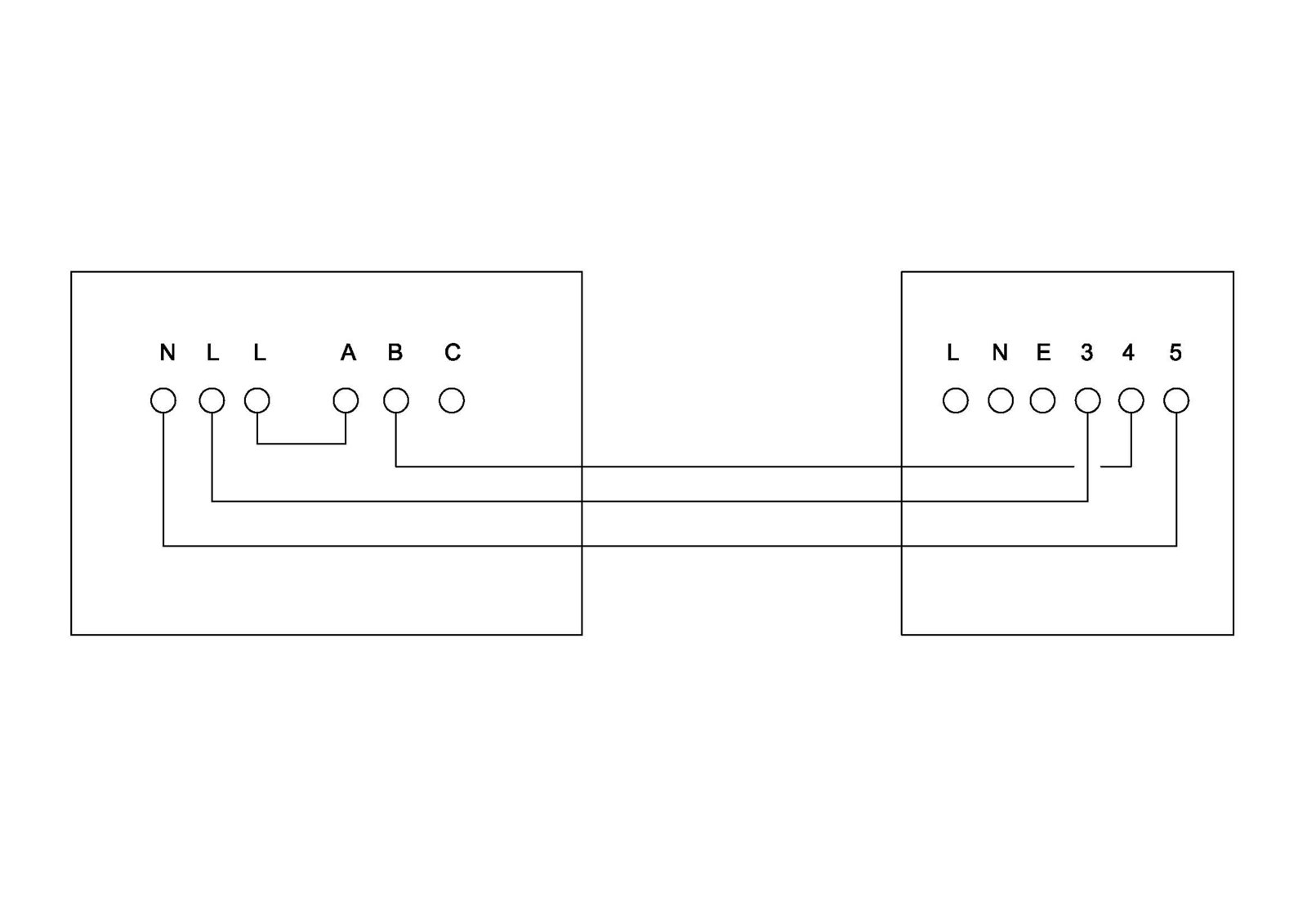

I am likely to be wrong but i was thinking that the wiring would be something like this because the tado is powered by batteries: Then connect the roomstat contacts in the wiring centre to. Personally i always run 4 core to the bdr and ignore the second.
If You Are Having Problems Binding A Particular Devic.
The bdr91 is a wireless relay box that can be used to switch valves, pumps, boilers or other heat sources as part of the. Bdr91 (n) = tadost spare bdr91 (l) = tadost spare bdr91. Know your heating controls, says.
You Can Pull That Green Terminal Block Out, Wire It Up.
The bdr91 is a wireless relay box that can be used to switch valves, pumps, boilers, or other heat sources as part of the range of honeywell home 868mhz radio. This wireless relay box transmits on 868mhz using rameses 2 protocol and is able to switch on and off central heating components with 230v or volt free switching (max current 5a). Honeywell home wireless relay box.
It's Still Going To Work The Same If You Connect A To 2 And B To 3.
Honeywell bdr91 wireless relay box installation. Honeywell home wireless relay box. This can save running an extra feed from the boiler or wiring center to the bdr, but only if using 240v switching.
Because An Earth Wire Is Being Used As A Live Conductor.
Position the unit to be paired close to the bdr91 (remove from wall if already installed) prepare relay box, reset stored data in bdr91 put relay box into binding mode if. The earth wire with red tape at salus 'no' (switched live) goes to bdr91 'b' 2. Honeywell wiring diagrams for the correct wiring of bdr91’s for combi boilers, motorised zone valves and s plan and y plan systems is on page 44 to page 47 of the.
